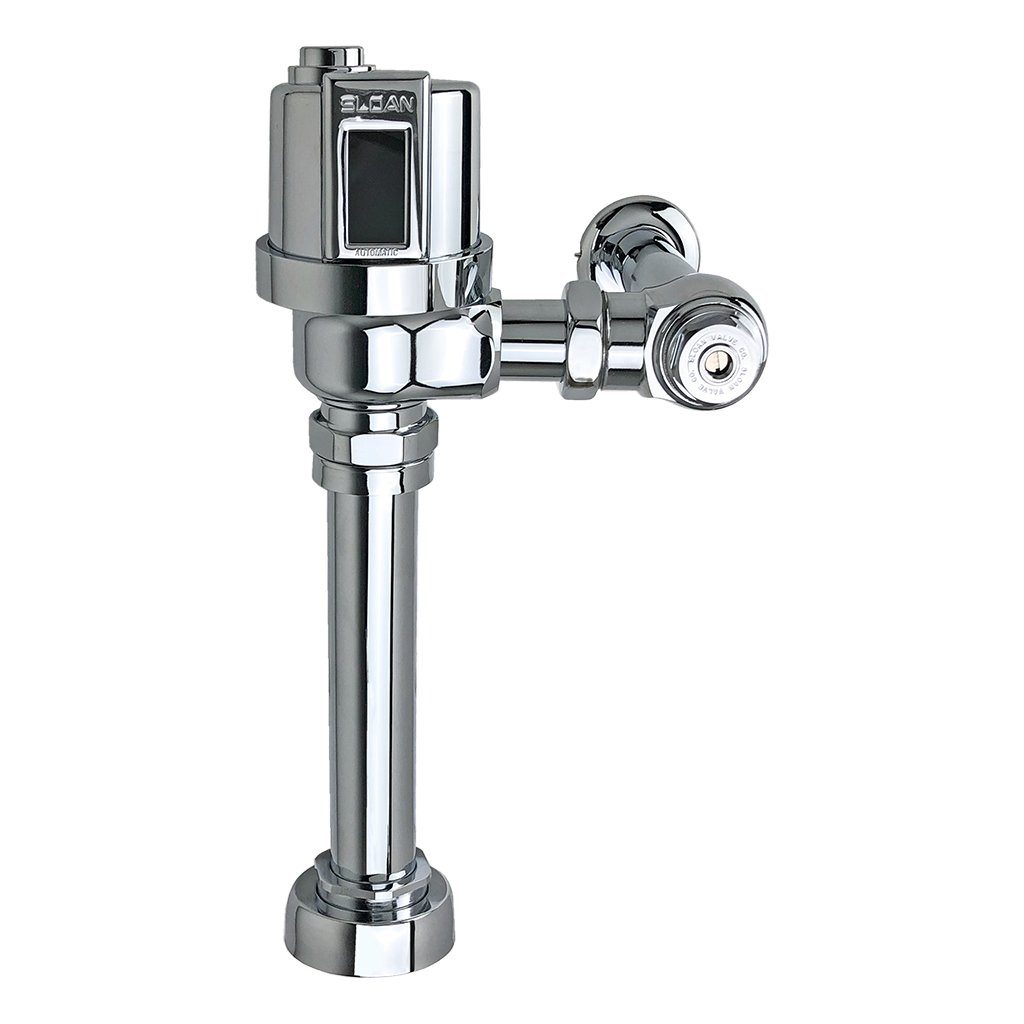

Sloan Sensor Flushometer 1.28 GPF for Closet
Part Number: #48973
Sloan Model Number: 8111MC-1.28-DFB-OR
Sloan Code Number: 3790093
Manufacturer: Sloan
This Sloan Sensor Flushometer has a low consumption 1.28 GPF and is designed for closet applications. The all metal zinc die cast sensor housing without visible fasteners makes it a great flushometer to use in vandal prone locations. It has a fixture connection and a 1-½ inch vacuum breaker. Inside is a dual-filtered fixed bypass diaphragm which makes clogs less likely. The unit is single flush and battery operated. It has an electrical override. Polished chrome finish. Sloan model 8111MC-1.28-DFB-OR.
Specifications:
• Flush Volume: 1.28 gpf (4.8 Lpf)
• Finish: Polished Chrome (CP)
• Power Type: Battery
• Battery Life: 6 years
• Valve: Diaphragm
• Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Override: Electrical (OR)
Features:
• All metal zinc die cast sensor housing with no visible fasteners
• High chloramine resistant PERMEX synthetic rubber diaphragm with DFB
• Valve body, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037.
• Courtesy Flush® Override Button
• ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Adjustable tailpiece to accommodate different horizontal requirements
• High copper, low zinc brass castings for dezincification resistance WaterSense compliant when used with a WaterSense compliant fixture
• Available in low consumption (1.6 gpf/6.0 Lpf) and high efficiency (1.28 gpf/4.8 Lpf) models
Compliance & Certifications:
ADA Compliant, cUPC Certified, BAA Compliant, cUPC Green Certified, WaterSense Listed, BREEAM Water Credit, BREEAM Materials Credit, Green Globes Water Credit, Green Globes Materials & Resources Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits
Resources:
Sloan 8111MC-1.28-DFB-OR Spec Sheet
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
